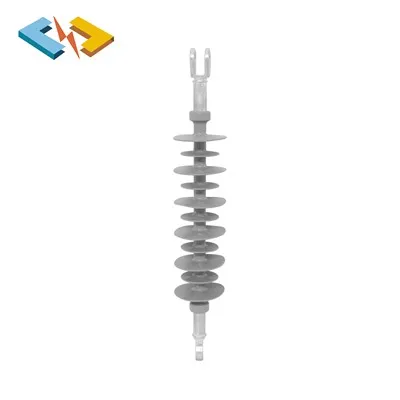

suspension hom silicone composite insulator
Qauv NO.:FXBW-33/70
Cov khoom no yog compact thiab hnav, txog 1/6 mus rau 1/9 qhov hnyav ntawm porcelain insulators ntawm tib theem voltage. Nws cov qauv yooj yim ua rau kev thauj mus los thiab kev teeb tsa yooj yim. Lub tsev muab cov dej tsis zoo, tiv thaiv cov rwb thaiv tsev los ntawm kev ntub dej. Qhov no tshem tawm qhov xav tau ntawm kev ntsuas rwb thaiv tsev thiab ntxuav, txo cov kev siv zog ua haujlwm niaj hnub.
Technical Specifications
| Kev piav qhia | Rated Qhov hluav taws xob (kV) |
Specified Mechanical Tensile Load (kN) | Coupling Size | Ntu Qhov siab H (mm) |
Yam tsawg kawg Nominal Arcing Distance H (mm) |
Yam tsawg kawg nkaus Nominal Creepage DistanceL (mm) | Lightning Impulse Withstand Voltag Ntau dua lossis sib npaug rau (kV) | Kev ntub dej hloov Impulse Withstand Voltage Ntau dua lossis sib npaug rau (kV) | Lub Hwj Chim Nthuav Nthuav Tawm Voltage Ntau dua lossis sib npaug rau (kV) |
| FXBW3-33/70 | 33 | 70 | 16 | 610±15 | 445 | 1100 | 240 | - | 100 |
1. Customization ntawm cov xim muaj.
2. Cov ntaub ntawv hluav taws xob hauv qab 220kV muaj feem cuam tshuam rau cov kab sib txuas ncej insulators tsis muaj corona rings, mounted vertically. Rau 220kV thiab siab dua, Wuhan Line Power pom zoo rau kev teeb tsa corona rings.
3. Ntxiv qhov ntev thiab qhov tob tob yog muaj; thov hu rau lub chaw muag khoom kom paub meej.
4. Tag nrho qhov ntev, kev kam rau siab, thiab kev sim ua raws li cov qauv kev tso cai IEC lossis ANSI cov qauv.
5. Tag nrho qhov ntev yog nyob rau hauv millimeter (mm). Yog hais tias teev nyob rau hauv nti thiab phaus, ua siab zoo qhia.
6. Peb tuaj yeem tsim cov qauv tsim raws li tus neeg siv khoom kawg.
